Locating the PCI slots定位的PCI插槽
When the cover is removed, the first thing to do is to locate the PCI slots on your motherboard.当盖被拆除,首先要做的是找到你的主板上的PCI插槽。 Different motherboards have different amounts of PCI slots, for example, you may already have a PCI card installed, in which case just choose an empty slot to install your new PCI card.不同的主板有不同数量的PCI插槽,例如,您可能已经安装了PCI卡,在这种情况下只需要选择一个空槽安装新的PCI卡。
you can see an example of a PCI slot in fig 1.1 below:你可以看到下面的PCI插槽, 图1.1的一个例子:

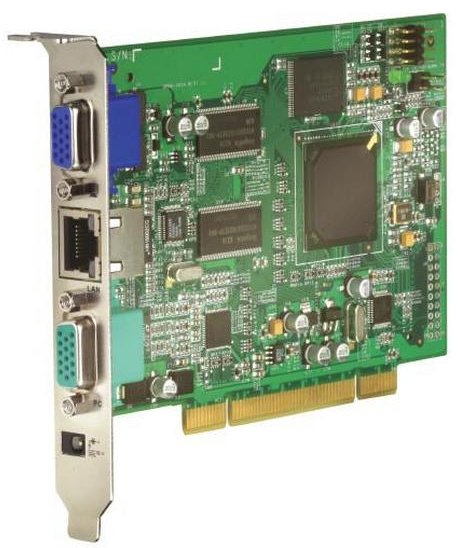

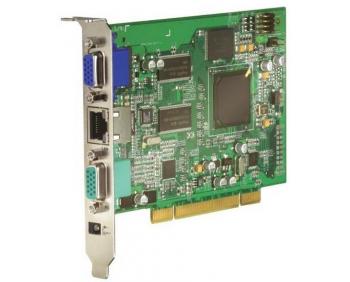

In fig 1.2 above you can see a typical PCI card, we have pointed out an alignment notch ( A ), this is used to align the card with the slot. 图1.2在上面你可以看到一个典型的PCI卡,我们曾指出一个对齐缺口( 一 ),这是用于对齐卡插槽使用。 If you take a look at the slot in fig 1.1 you can see how it is aligned with the card.如果你的卡了一眼,在图1.1的插槽对齐,你可以看到它是如何。
back to top | © Copyright 2001-2010 helpwithpcs.com 回到顶部 | © 版权所有 2001-2010 helpwithpcs.com
Install modem/sound card/ethernet card 安装Modem /声卡/以太网卡
Once you have chosen which PCI slot you want to use, remove the "blank" from the back of the case to make room for the card.一旦你选择了你想要的PCI插槽使用,请从案件的背面的“空白”,使该卡的空间。 If you are unsure how to remove the "blanks" see your PC case's manual.如果您不确定如何消除“空白”看到您的PC机箱手册。
note: Blank refers to a small piece of metal that is inserted into the back of the case, in alignment with the PCI slots. 注:空白指的是一个小的金属片是插入到案件的背面,在与PCI插槽对齐。 Most blanks are fixed into position with a screw, but different cases use different methods.大多数毛坯到用螺丝固定的位置,但不同情况下使用不同的方法。
After removing the blank, align the card with the slot and gently but firmly push the card into position.删除后的空白,对准卡插入插槽,然后轻轻但坚定地推到定位卡。
Once the PCI card is seated firmly into place fig 1.3 , insert the fixing screw fig 1.4 , check to make sure nothing has been loosened during installation and then replace the case cover.一旦就位1.4 PCI卡到位牢牢图1.3,图插入固定螺丝,检查以确保没有被安装在松动,然后更换机壳。 |
